AL - 1000 Series

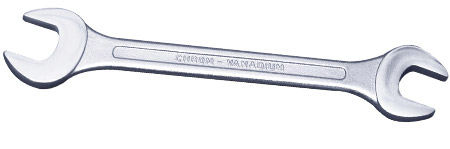

Double Open End Spanner (DIN 3110)

Drop Forged , Long Pattern Chrome Vanadium Steel,
Chrome Plated Polish Head available in Loose Pieces and Sets

(DIN 3110) Gs Logo

Art No.
AL Series

Size

Length in MM

Net Wt.in gms.

1001

6 x 7

122

1002

8 x 9

140

1003

10 x 11

155

1004

12 x 13

171

1005

14 x 15

190

1006

16 x 17

204

110

1007

18 x 19

220

150

1008

20 x 22

235

200

1009

21 x 23

248

230

1010

24 x 26

267

320

1011

24 x 27

267

275

1012

25 x 28

280

345

1013

30 x 32

301

450

METRIC SIZE

Art No. AL Series	No.of Pcs./ Set	Size MM	Net wt. In gms.
1050	6	6x7,8x9, 10x11,12x13, 14x15,16x17.	357
1051	8	6x7,8x9, 10x11,12x13, 14x15,16x17, 18x19,	707
1052	12	6x7,8x9, 10x11,12x13, 14x15,16x17, 18x19, 20x22,21x23,24x27, 25x28,30x32	2007
