AL - 1300 Series

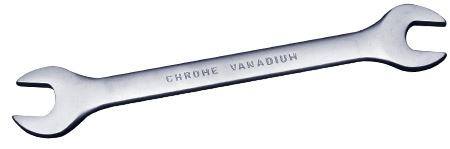

Double Open End Spanner Elliptical Type Full Polish/Satin Finish (Din-3110) |
| Drop Forged,Chrome Vanadium Steel available in Loose Pieces and Sets (Also available with Private Logo) |
 |
Din - 3110
|
Art No.
(AL Series) |
Size |
Length MM |
Net wt.
In gms. |
| 1301 |
6x7 |
122 |
24 |
| 1302 |
8x9 |
140 |
32 |
| 1303 |
10x11 |
155 |
55 |
| 1304 |
12x13 |
171 |
76 |
| 1305 |
14x15 |
190 |
112 |
| 1306 |
16x17 |
204 |
130 |
| 1307 |
18x19 |
220 |
165 |
| 1308 |
20x22 |
235 |
210 |
| 1309 |
21x23 |
248 |
240 |
| 1310 |
24x26 |
267 |
315 |
| 1311 |
24x27 |
267 |
315 |
| 1312 |
25x28 |
280 |
360 |
| 1313 |
30x32 |
301 |
485 |
|
| |
| METRIC SIZE |
Art No.
(AL Series) |
No. of PCS/Set |
Size MM |
Net Wt. in gms. |
| 1350 |
6 |
6x7,8x9, 10x11,12x13,14x15,16x17. |
429 |
| 1351 |
8 |
6x7,8x9, 10x11,12x13, 14x15,16x17,18x19, 20x22. |
804 |
| 1352 |
12 |
6x7,8x9, 10x11,12x13, 14x15,16x17,18x19, 20x22, 21x23,24x27,25x28,30x32 |
2204 |
|
| |
|
