AL - 1200 Series

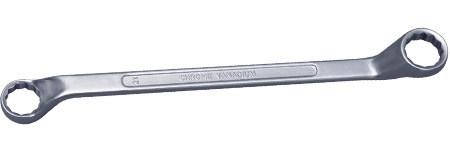

Deep Offset Bi-Hexagonal Ring Spanner (DIN-838) |
| Drop Forged, Recessed Panel Chrome Vanadium Steel, Chrome Plated Polish Head available in Loose Pieces and Sets |
 |
DIN-838
|
Art No.
(AL Series) |
Size |
Length MM |
Net wt.
In gms. |
| 1201 |
6x7 |
183 |
50 |
| 1202 |
8x9 |
192 |
60 |
| 1203 |
10x11 |
202 |
85 |
| 1204 |
12x13 |
217 |
115 |
| 1205 |
14x15 |
233 |
130 |
| 1206 |
16x17 |
251 |
170 |
| 1207 |
18x19 |
268 |
200 |
| 1208 |
20x22 |
296 |
275 |
| 1209 |
21x23 |
322 |
295 |
| 1210 |
24x26 |
330 |
370 |
| 1211 |
24x27 |
330 |
370 |
| 1212 |
25x28 |
345 |
395 |
| 1213 |
30x32 |
370 |
515 |
|
| |
| METRIC SIZE |
Art No.
(AL Series) |
No. of PCS/Set |
Size MM |
Net Wt. in gms. |
| 1250 |
6 |
6x7, 8x9, 10x11, 12x13, 14x15, 16x17. |
610 |
| 1251 |
8 |
6x7,8x9, 10x11,12x13,14x15,16x17,18x19, 20x22. |
1085 |
| 1252 |
12 |
6x7, 8x9, 10x11, 12x13, 14x15, 16x17,18x19, 20x22, 21x23, 24x27,25x28, 30x32 |
2660 |
|
| |
|
