AL - 1800 Series

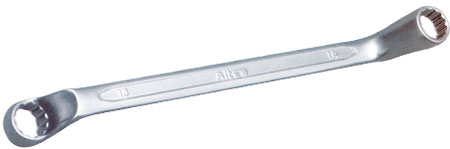

Bi-Hexagonal Ring Spanner Cold Stamp (Din-838) |
| Drop Forged , Chrome Vanadium Steel available in Loose Pieces and Sets (Also available with Private Logo) |
 |
Din-838
|
Art No.
AL Series |
Size |
Length MM |
Net wt.
In gms. |
| 1801 |
6x7 |
183 |
50 |
| 1802 |
8x9 |
192 |
70 |
| 1803 |
10x11 |
202 |
92 |
| 1804 |
12x13 |
217 |
125 |
| 1805 |
14x15 |
233 |
150 |
| 1806 |
16x17 |
251 |
170 |
| 1807 |
18x19 |
268 |
210 |
| 1808 |
20x22 |
296 |
305 |
| 1809 |
21x23 |
322 |
325 |
| 1810 |
24x27 |
330 |
395 |
| 1811 |
25x28 |
345 |
425 |
| 1812 |
30x32 |
370 |
560 |
|
| |
| METRIC SIZES SETS |
Art No.
AL Series |
No. of PCS/Set |
Size MM |
Net Wt. in gms. |
| 1850 |
6 |
6x7,8x9, 10x11,12x13,
14x15,16x17. |
655 |
| 1851 |
8 |
6x7,8x9, 10x11,12x13, 14x15,16x17,18x19, 20x22. |
1170 |
| 1852 |
12 |
6x7,8x9, 10x11,12x13, 14x15,16x17,18x19, 20x22, 21x23,24x27, 25x28,30x32 |
2875 |
|
|
